Navigating Warehouse Safety: A Guide to Pallet Rack Row Spacers for Carolina Businesses
The Importance of Pallet Rack Row Spacers in High-Density Storage
Row spacers play a critical role as essential structural components in back-to-back pallet rack configurations. These spacers are instrumental in maintaining optimal space between adjacent rows, effectively preventing shifting and enhancing overall system stability. However, their primary function goes beyond mere spacing; they are pivotal in ensuring fire safety and insurance regulations compliance by preserving the necessary flue space between rack rows. This open flue space facilitates water penetration from ceiling sprinklers to all rack levels and enables smoke from fires to draft upwards, triggering the sprinkler system when needed. Crafted primarily from steel, row spacers are available in various sizes and gauges, tailored to meet the diverse needs of rack systems. Following is a deeper exploration of row spacers, their benefits, and functions.
5 Key Functions of Row Spacers:
- Fire Safety: Row spacers maintain longitudinal flue spaces between back-to-back rows of pallet racking, allowing more effective fire suppression measures and enhancing warehouse safety.
- System Stability: Row spacers add stability to rack rows, guarding against potential impacts from forklifts and other warehouse equipment. This stability is essential for maintaining the storage system’s integrity and safeguarding personnel and inventory.
- Preserving Alignment: Ensuring that rack rows remain plumb and properly aligned is essential for maximizing the functionality of storage racking systems, thereby facilitating efficient storage and retrieval operations.
- Ensuring Structural Integrity: While beneficial in low rack systems, row spacers are required in tall systems, particularly those that exceed the ANSI/RMI 6-to-1 height-to-depth ratio. This ratio is calculated by measuring the distance from the floor to the top beam level and dividing it by the upright depth. Exceeding a ratio of 6-to-1 requires engineering review… and row spacers in the design if rows are placed back-to-back. For pallet racks of 6:1 or higher, row spacers should be positioned a minimum of 8’ to 10’ apart to ensure compliance and provide necessary stabilization.
Place row spacers starting at the second horizontal upright brace elevation (approximately 48”-60” from the ground) and at every second horizontal brace panel point thereafter (approximately 84” to 108” spacing). Flue spaces wider than 24” necessitate heavy-duty spacers with additional hardware requirements, typically used with a heavy-duty horizontal strut. - High-Density Pallet Storage Systems:

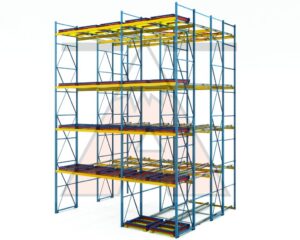

Row spacers support high-density storage systems by helping to establish the frame line necessary for deep lane configurations. This setup involves a series of uprights, columns, and row spacers forming an upright line within systems such as push-back, drive-in/thru, pallet flow, and pallet shuttle systems. For instance, in a 4-deep push-back rack system, the upright line typically consists of an upright followed by a row spacer, another upright, another row spacer, and finally, a single column positioned at the back.
Installation & System Maintenance
- Choosing the Right Size: Standard sizes range from 6″ to 18″, with considerations for pallet rack depth and fire code requirements. Narrower or wider spacers may be used to accommodate specific design needs, such as warehouse columns.
- Regular Assessment: Periodic pallet rack inspections are necessary to identify any signs of damage or wear. Prompt repair or replacement by certified specialists helps maintain the system’s safety and functionality.
- Professional Support: Partnering with experienced professionals, such as the Apex team, ensures comprehensive support in designing, installing, and maintaining pallet rack systems. By leveraging their expertise, businesses can effectively address warehousing needs and challenges.
These components contribute significantly to warehouse efficiency across the Carolinas region, from ensuring fire safety compliance to enhancing stability and alignment. For expert guidance and support in maximizing the effectiveness of pallet rack systems, rely on the expertise of your local Apex Carolinas team.
