High-Velocity Airflow for Zones HVLS Cannot Reach
Directional industrial fans deliver targeted, high-velocity airflow for spot cooling, supplemental ventilation, and flexible deployment in warehouse and industrial environments.
While HVLS ceiling fans manage large open areas, directional units focus airflow where concentrated movement is required, including:
Apex supplies Vindus C100 and C150 models as part of a coordinated airflow system or as standalone solutions when localized airflow is the priority.
Where Directional Industrial Fans Fit Best
Directional airflow is effective when:
These fans move air with velocity and direction, supporting comfort and airflow control in defined zones rather than across an entire building.

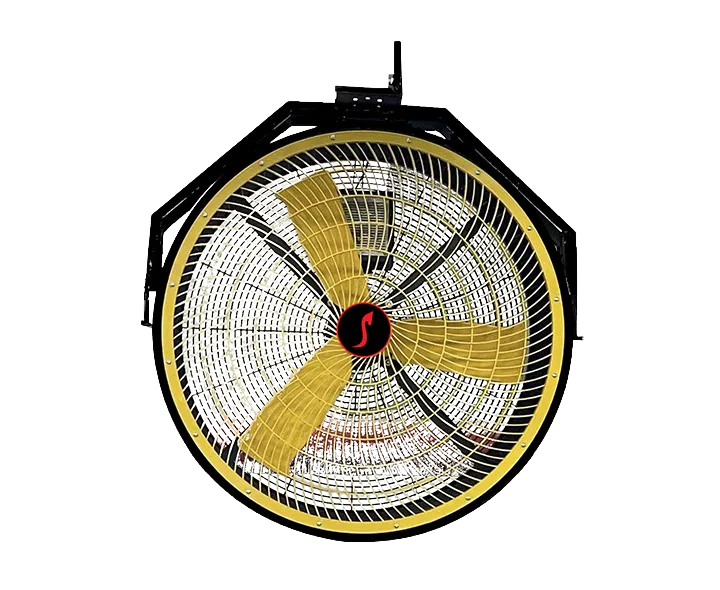

C100 — Mobile or Wall-Mounted Industrial Fan
The C100 is a 36-inch directional industrial fan designed for long-range, high-velocity airflow in compact work zones and warehouse aisles.
Key Features
Specifications
| Model | Power (W) | Voltage (V) | Weight (lbs) | Max Speed (RPM) | Speed Control | Airflow Distance | Dimensions (in) |
|---|---|---|---|---|---|---|---|
| C100 | 400 | 110 | 37 | 900 | Variable | 100 ft | 36 x 36 x 13 |
Wall-mounted C100 fan approximate dimensions:
Width: 3 ft
Height: 3 ft
Defined operational parameters
The C100 is well suited for targeted airflow in aisles, staging areas, and production environments where flexibility and directional control are required.

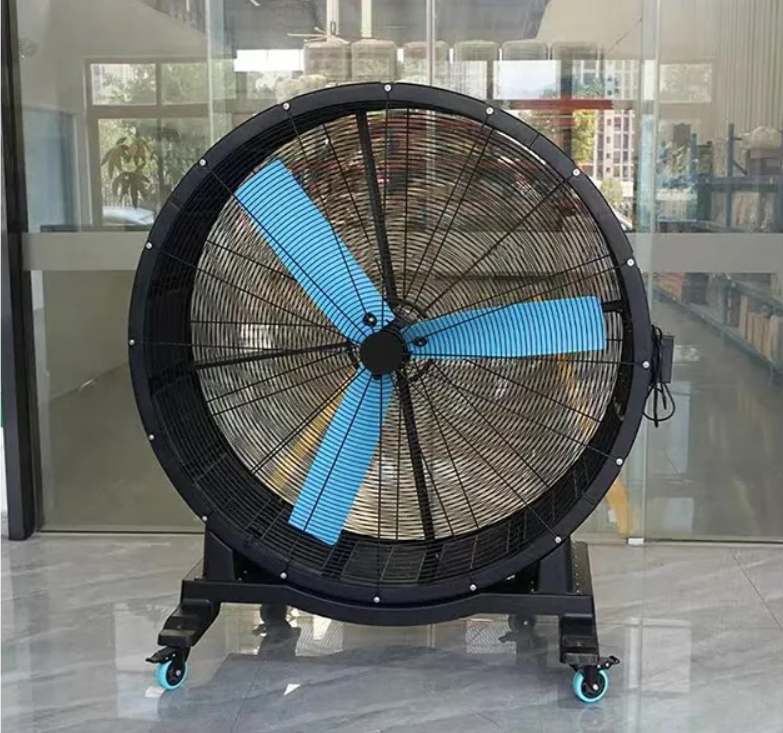

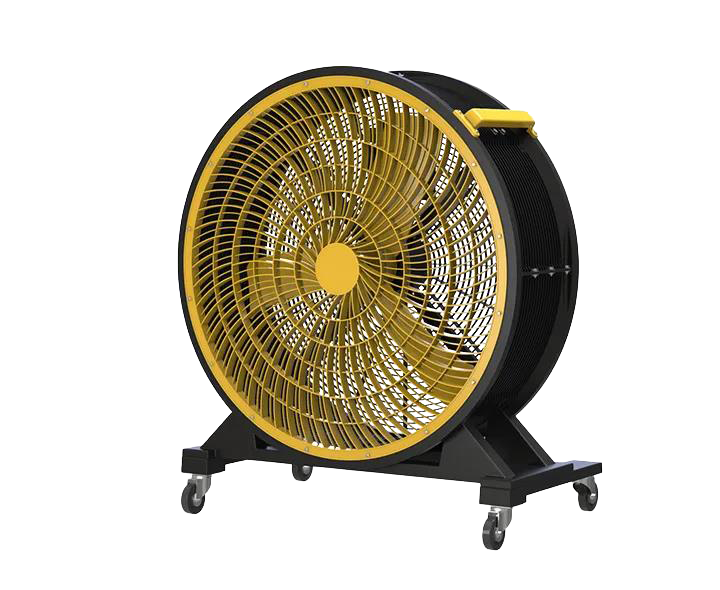

C150 — Large-Format Mobile Directional Fan

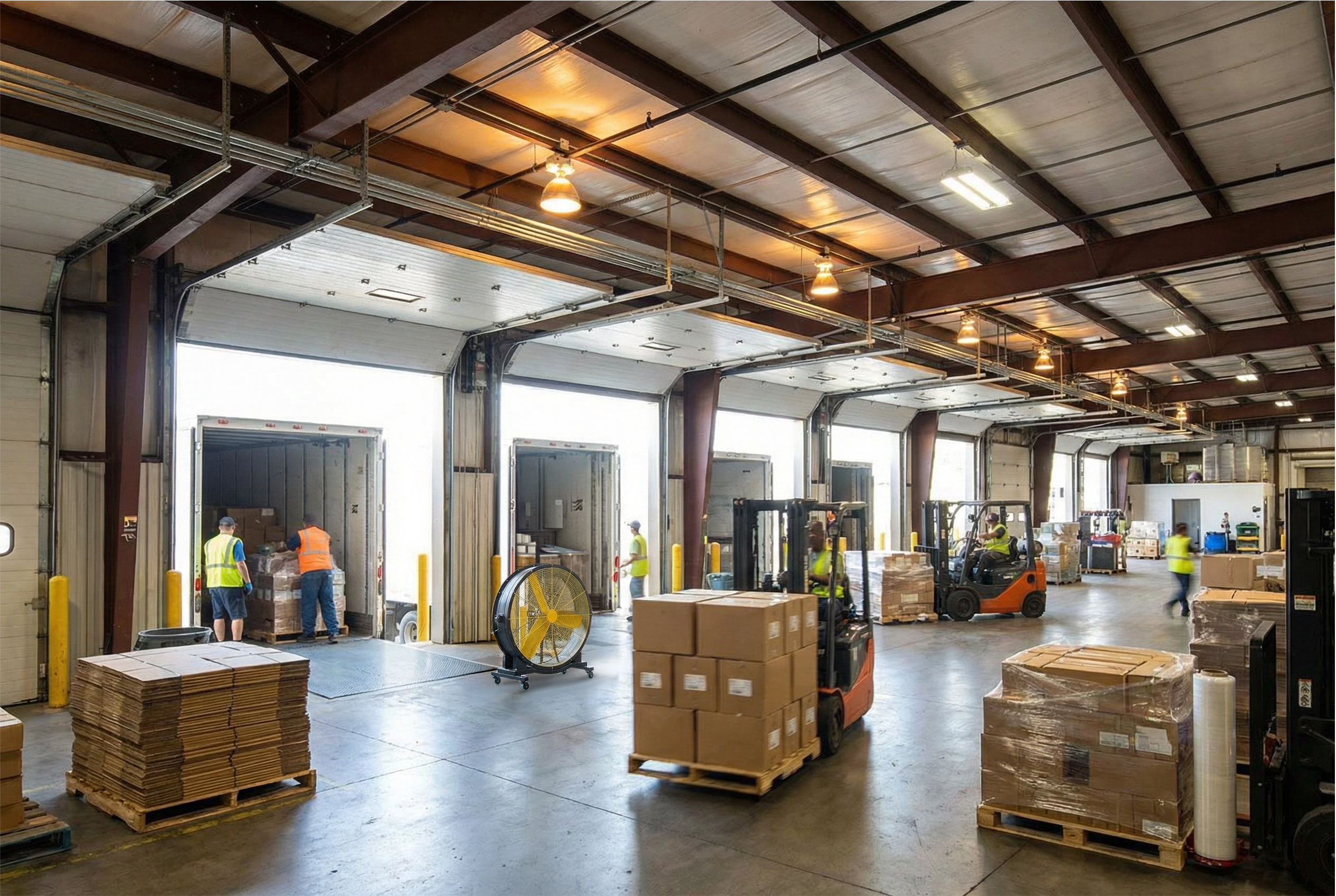

The C150 provides higher-capacity airflow in a larger mobile format for dock zones, open warehouse areas, and high-activity workspaces.
Key Features
Specifications
| Model | Power (W) | Current (A) | Voltage (V) | Noise (dB @ 5m) | Max Speed (RPM) | Speed Control | Airflow Distance | Dimensions (in) |
|---|---|---|---|---|---|---|---|---|
| C150 | 600 | 3.95 | 110 | 65 | 440 | VFD Stepless | 60 ft | — |
The Big Moving Fan C150 approximate dimensions:
Length: 59 in
Width: 31 in
Height: 66 in
The C150 is designed for demanding environments requiring flexible deployment and sustained high-volume airflow.
Standalone or Integrated Into Your Airflow Plan
Directional industrial fans can operate independently or support a broader airflow strategy.
Standalone Applications
Integrated Applications
Apex evaluates layout, workflow, and airflow objectives to determine the right deployment strategy.
