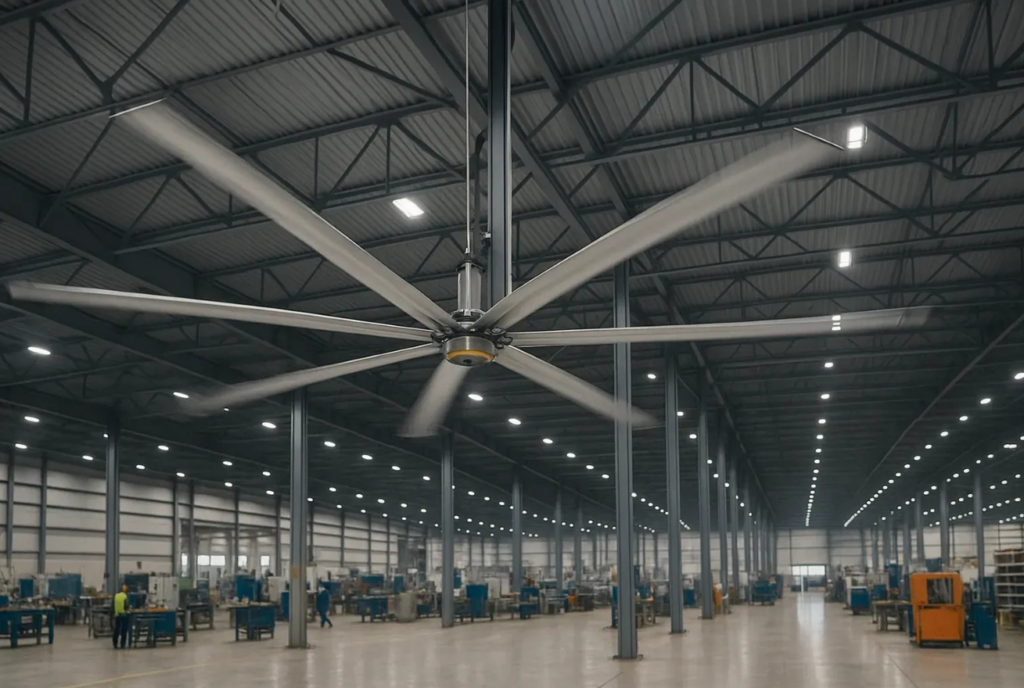

HVLS Large Industrial Ceiling Fans For High-Clear Facilities

HVLS (High-Volume, Low-Speed) ceiling fans move large volumes of air efficiently and quietly to improve comfort across warehouse aisles, pick areas, and docks. Apex partners exclusively with Vindus Fans to deliver quality products as part of an overall coordinated airflow system solution.

We offer large industrial ceiling fans ranging from 8 to 24 feet in diameter with power ranging from about 100 to 1,080 watts, depending on the model, to match coverage and efficiency to each zone in your facility.

Airflow Coverage For Large Footprints

Warehouses & Distribution Centers

Manufacturing Facilities

Automotive Service Centers

Food Processing Plants

Cold Storage Facilities

Get Help Sizing Your HVLS Fans

Why Choose HVLS Technology

HVLS works because it creates uniform, low-speed air movement across large footprints, helping reduce hot spots and improve comfort without disruptive turbulence.

Maximum Air Movement

Move high volumes of air across wide areas with fewer fans.

Ultra-Quiet Operation

Conversation-friendly sound levels at max speed.

ENERGY EFFICIENT

Up to 80% less energy than traditional high-speed fans, supported by direct-drive PMSM efficiency and low power draw (many models <1 kW).

Precise Control

Adjustable speed control supports changing conditions and seasons.

HVLS Options For Small Zones To Full-Building Coverage

Vindus HVLS fans are built around direct-drive PMSM efficiency, quiet operation, and service-friendly access. Apex helps match fan diameter and spacing to the zones you need to cover—then validates placement around obstructions and clearances.

Industrial Fans for Warehouses | Apex Companies

P680 Series — Medium Spaces (8–14 ft)

Vindus P680 HVLS fans are engineered for medium-size commercial and industrial spaces where large-diameter HVLS fans aren’t the best fit. With a compact form factor and quiet, energy-efficient performance, P680 is ideal for workshops, logistics areas, and other tighter warehouse support zones.

Where P680 fits best

Medium zones with lower clear heights
Areas where large diameters aren’t practical due to layout/obstructions
Comfort improvements in active work areas (staging, kitting, support spaces)

Performance range

Diameters: 8–14 ft
Best-fit clear height: 10–25 ft
Designed for extremely low energy consumption through lightweight, optimized design

Key features

Energy-efficient, direct-drive design (no oil / no seals to leak / low noise / low energy use)
Safety-focused construction: safety cable + blade retention links; redundancies in critical components
Low-mounted drive (~1.2 m) supports safer inspection and maintenance without roof access
Fully adjustable speed

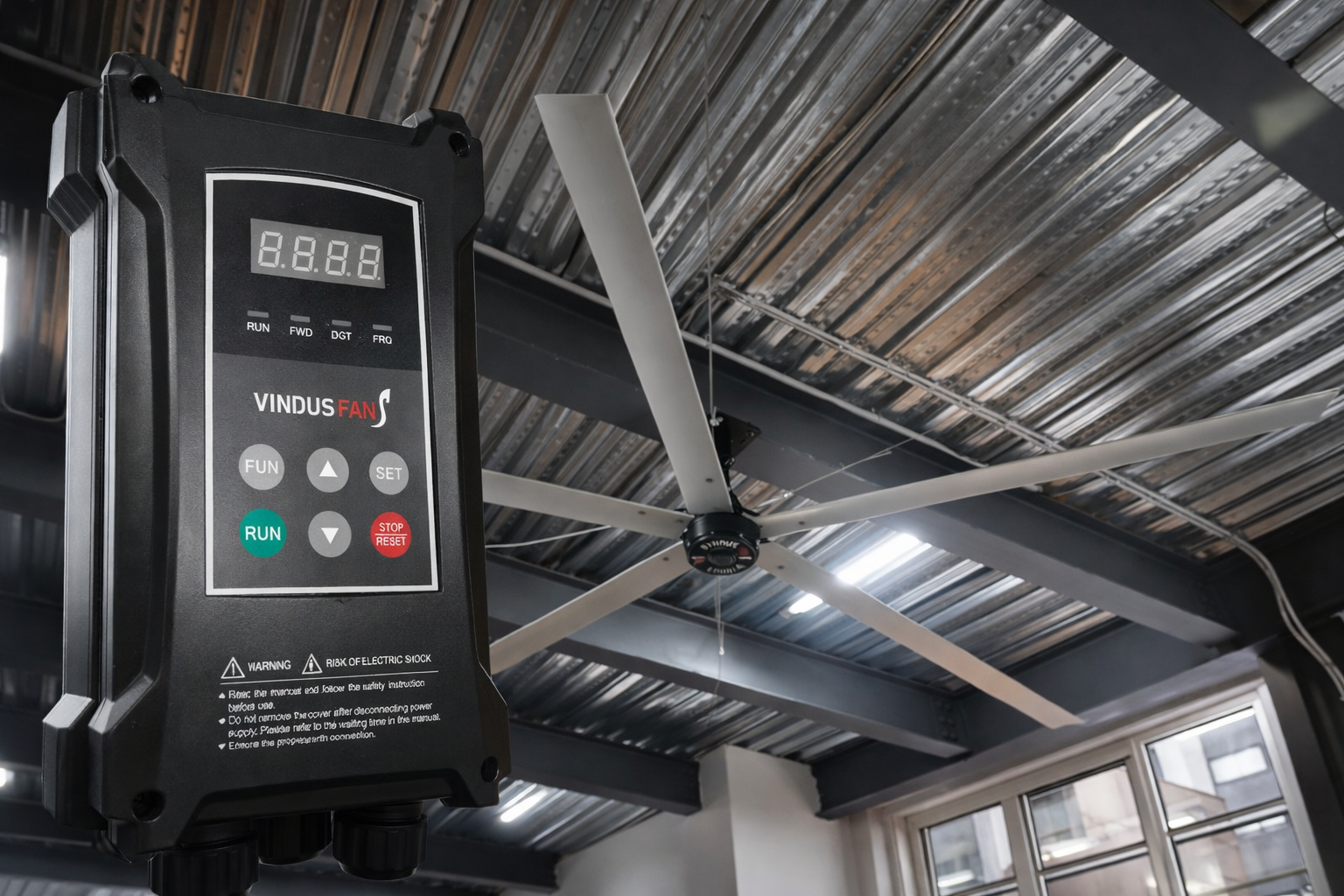

Controls

Vector control technology for precise control and stable performance
Ultra-low noise; reliable protection features for longevity

Model / Performance	Diameter (ft)	Number of Blades	Weight (lbs)	Max Speed (RPM)	Power Usage (Watts)	Typical Spacing (ft)	Recommended Blade Height (ft)
P680‑8	8	5	71	118	100	20‑40	10‑25
P680‑10	10	5	78	110	200	30‑50	10‑25
P680‑12	12	5	85	100	280	35‑60	10‑25
P680‑14	14	5	91	82	290	40‑70	10‑25

P-Series (P730 / P780) — Large Spaces (10–24 ft)

Vindus P-Series HVLS fans deliver powerful, consistent airflow driven by a permanent magnet synchronous motor (PMSM), while consuming less than 1,000 watts at maximum speed (model dependent). They provide comfortable airflow in summer and help equalize temperature stratification in winter—supporting lower operating costs over time.

Designed for lifecycle value

Floor-level integrated HMI enables safer operation, inspection, and maintenance without roof access or lifting equipment
Streamlined install using a single cable from ceiling to floor to simplify installation and reduce maintenance complexity

Performance range

Diameters: 10–24 ft
Best-fit clear height: 20–33 ft

Control options vary by series, with variable-speed operation across the lineup. P-Series adds a floor-level integrated HMI for easier access and maintenance.

Model / Performance	Diameter (ft)	Number of Blades	Weight (lbs)	Max Speed (RPM)	Power Usage (Watt)	Typical Spacing (ft)	Recommended Blade Height (ft)
P730‑10	10	5	153	90	140	30‑50	20‑33
P730‑12	12	5	162	87	230	35‑60	20‑33
P730‑14	14	5	171	85	410	40‑70	20‑33
P780‑16	16	5	179	78	450	50‑80	20‑33
P780‑18	18	5	188	67	460	55‑90	20‑33
P780‑20	20	5	246	60	560	60‑100	20‑33
P780‑24	24	5	257	57	950	75‑120	20‑33
X800‑24	24	6	283	57	1080	85‑140	20‑33

X800 Series — Extra-Large Coverage (Max Airflow)

The Vindus X800 is engineered for maximum airflow where extra-large spaces demand higher air volume and stronger air movement. Its six-blade configuration is designed to move more air across expansive footprints compared to conventional HVLS designs—making it a strong fit for the largest open warehouse/DC zones.

Best fit

The widest open areas where you want maximum coverage per fan
Facilities prioritizing high airflow volume across large footprints

Model	Diameter (ft)	Number of Blades	Weight (lbs)	Max Speed (RPM)	Power Usage (Watt)	Typical Spacing (ft)	Recommended Blade Height (ft)
X800-24	24	6	283	57	1080	85-140	20-33

HVLS Specifications at a Glance

VOLTAGE

208-240 VAC

SINGLE PHASE

SOUND

< 50 dBA

IP Rating

IP55

TEMP RANGE

15-130°F

MOTOR

PMSM

Direct Drive

Warranty

5 YEARS

Extended Available

Certifications

UL/ULc · CE · EN · IEC

Ready to Design Your HVLS Solution?

Our engineering team will analyze your facility and design a custom HVLS layout optimized for maximum performance and efficiency.
