Pallet Rack Systems in Utah
Pallet Racking Solutions for Utah Warehouses
Utah warehouses face seasonal volume swings, temperature extremes, and rapid e-commerce growth across the Mountain West. Apex designs pallet rack systems built around your operation's actual storage needs, from selective pallet racking for high-SKU distribution to high-density racking systems that maximize every square foot.
The Salt Lake City sales team provides local project support and coordinates installation across the region, backed by design and engineering from Apex's national team. With 20+ years of experience behind every project, Apex handles layout design, engineering, and installation coordination for both facility expansions and new builds throughout the Mountain West.
Pallet Racking System Types

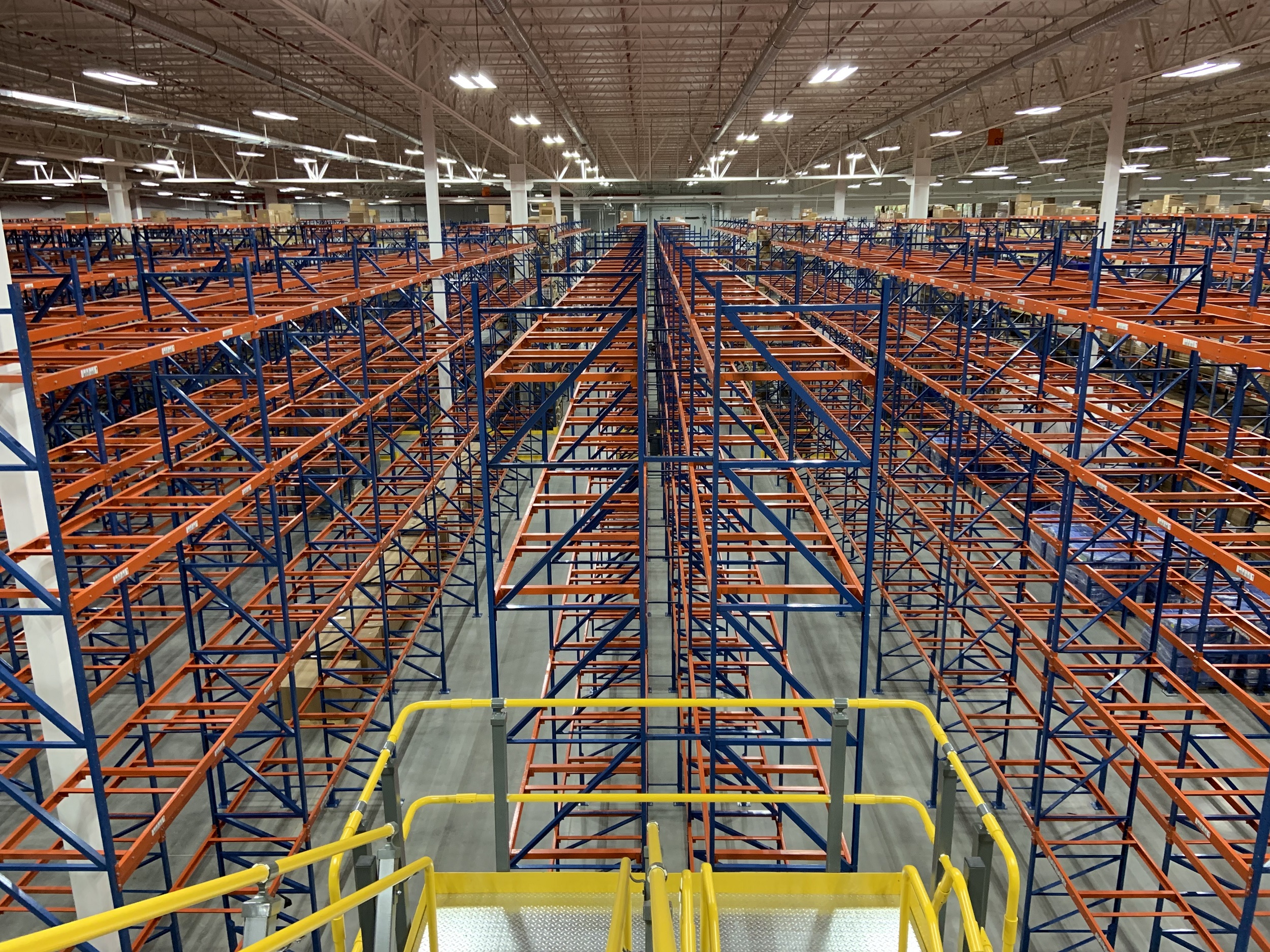

Selective Pallet Racking
Selective pallet racking gives forklifts direct access to every pallet position in the system. It's a common warehouse storage configuration and the right fit for operations with high SKU variety that need 100% selectivity. Upright frames and rack beams are configured to match your load capacity requirements, with wire decking available for added stability between beams.
Utah distribution centers and 3PLs with varied inventory profiles rely on selective rack because it supports direct access to every position without rearranging surrounding loads. It pairs with standard counterbalance forklifts, which keeps equipment costs predictable for growing operations. Selective rack also tends to be the lowest-cost configuration on a per-pallet-position basis, making it a strong baseline when budget and operational flexibility both matter. When floor space is limited and SKU count is low, higher-density systems may deliver more positions per square foot with fewer aisle requirements.

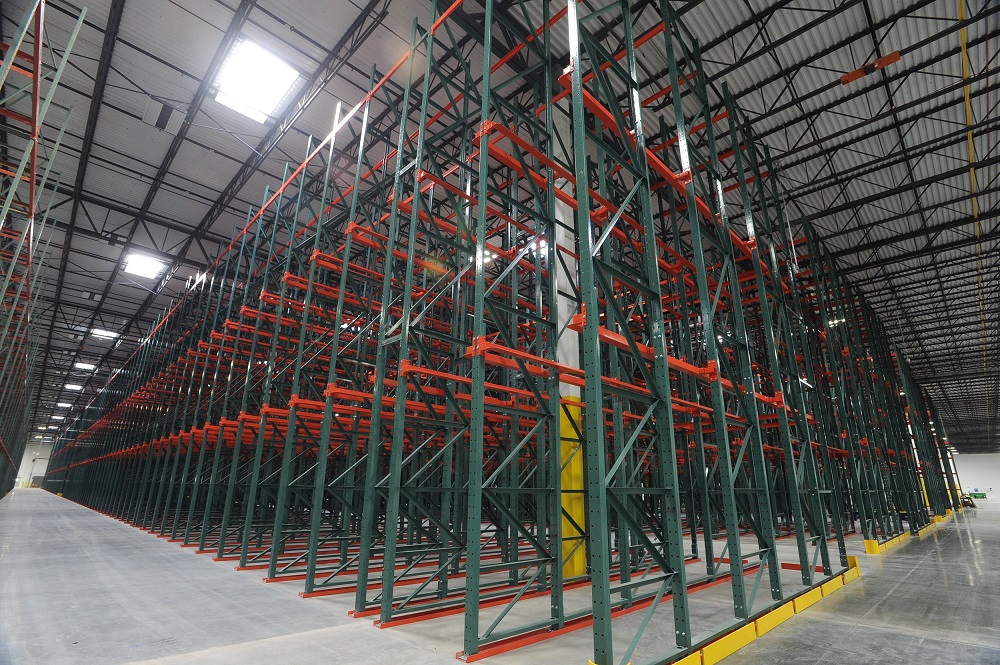

Drive-In/Drive-Thru Racking
Drive-in pallet racking is a high-density system where forklifts drive directly into the rack structure. It operates on a LIFO (last in, first out) basis, making it a strong fit for high-volume, low-SKU operations and seasonal product staging.
Drive-thru racking allows entry from both ends for FIFO capability. Both configurations increase storage space over selective rack by eliminating intermediate aisles. Neither is the right choice when you need fast pick rates across many SKUs, since operators work inside the rack structure and benefit from experienced handling.

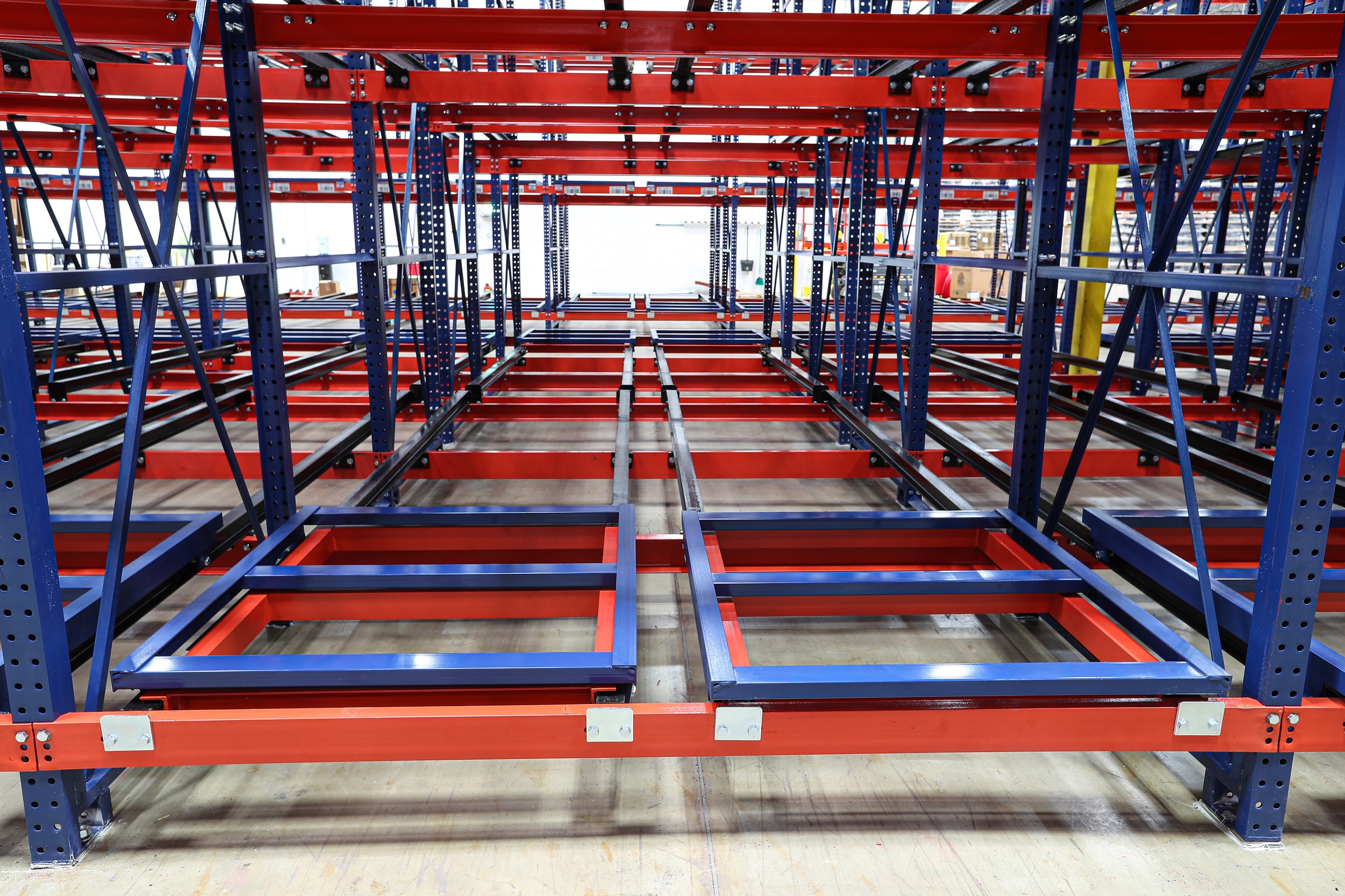

Push-Back Racking
Push-back racking uses nested carts on inclined rails to store pallets multiple positions deep from a single aisle. Each loaded pallet pushes the previous one back. On retrieval, gravity feeds the next pallet forward into picking position.
This pallet racking system delivers higher density than selective without requiring forklifts to enter the structure. It handles heavy loads across multiple SKUs where vertical space utilization and warehouse efficiency matter more than strict rotation. Push-back runs LIFO, so it's not the right choice when FIFO is required.

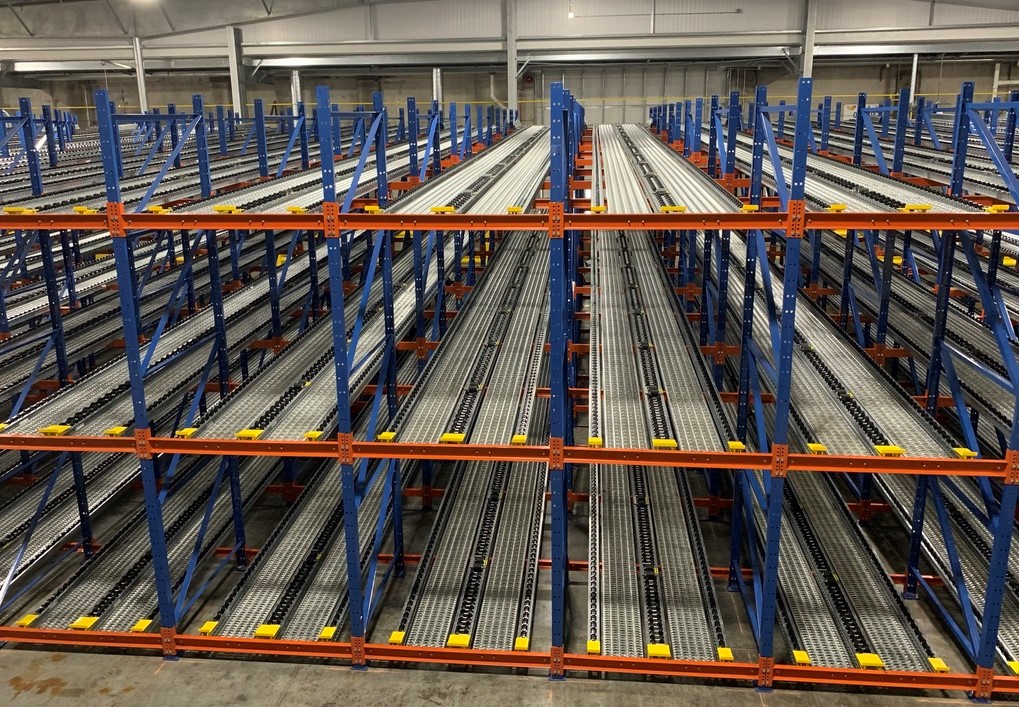

Pallet Flow Racking
Gravity-fed FIFO system uses pitched wheeled or roller rails to move pallets from the load side to the opposite pick aisle. Flexible to pallet variety.
Pallet flow rack delivers strong throughput for high-velocity SKUs where material handling efficiency and date rotation are priorities. Utah food and beverage distributors and cold storage operations rely on flow rack to maintain FIFO compliance while keeping pallet movement fast.

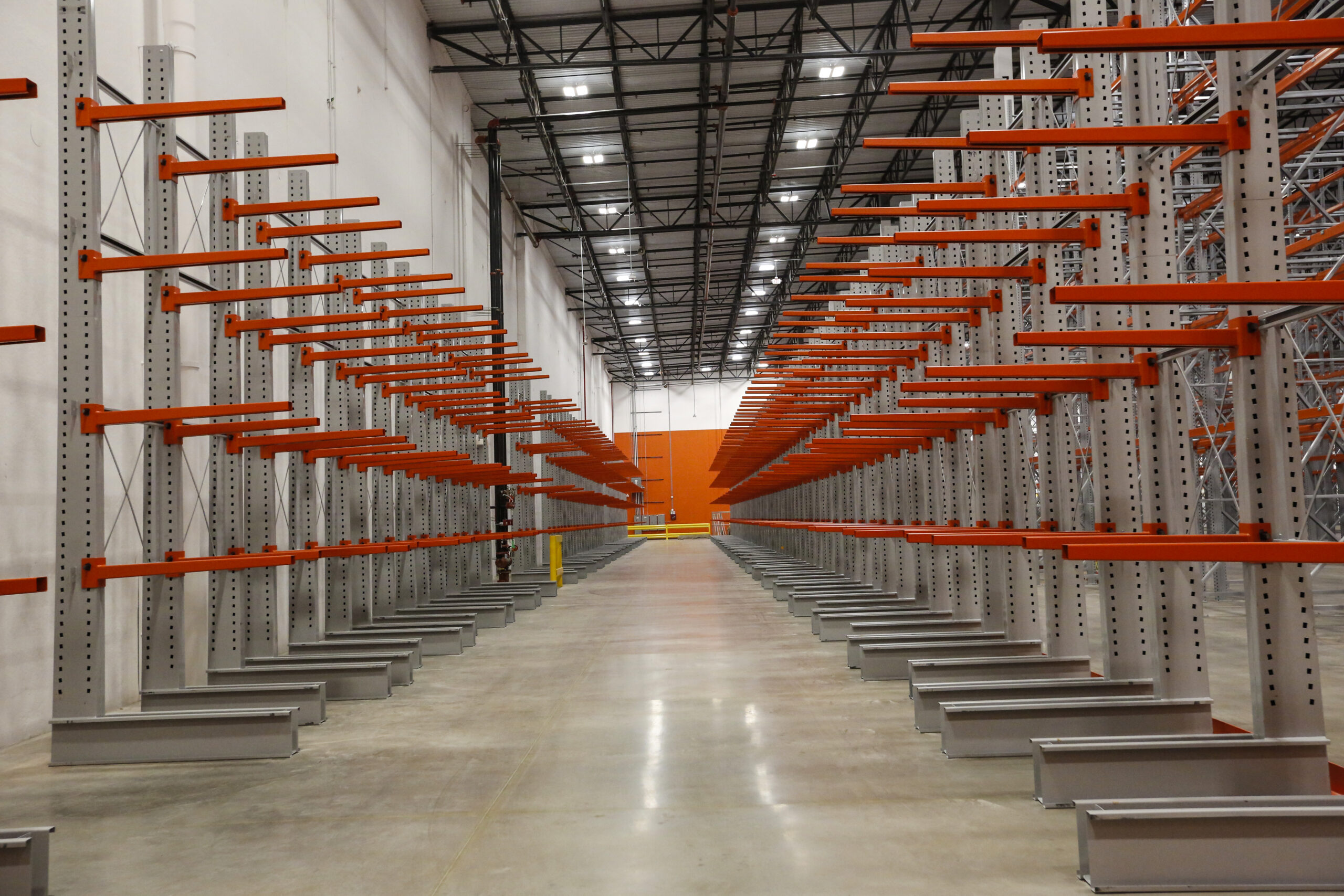

Cantilever Rack Systems
Cantilever racking stores long, bulky, and irregularly shaped materials that don't fit standard pallet rack configurations. Lumber, pipe, steel bar stock, furniture, and building materials require the open-front access that cantilever arms provide rather than obstructive front columns.
Arm length and capacity ranges are configured to match the weight and dimensions of your specific loads. Cantilever storage racks are a heavy-duty option for manufacturing staging areas, building supply operations, and any facility handling oversized materials that would otherwise consume floor space in disorganized stacks.

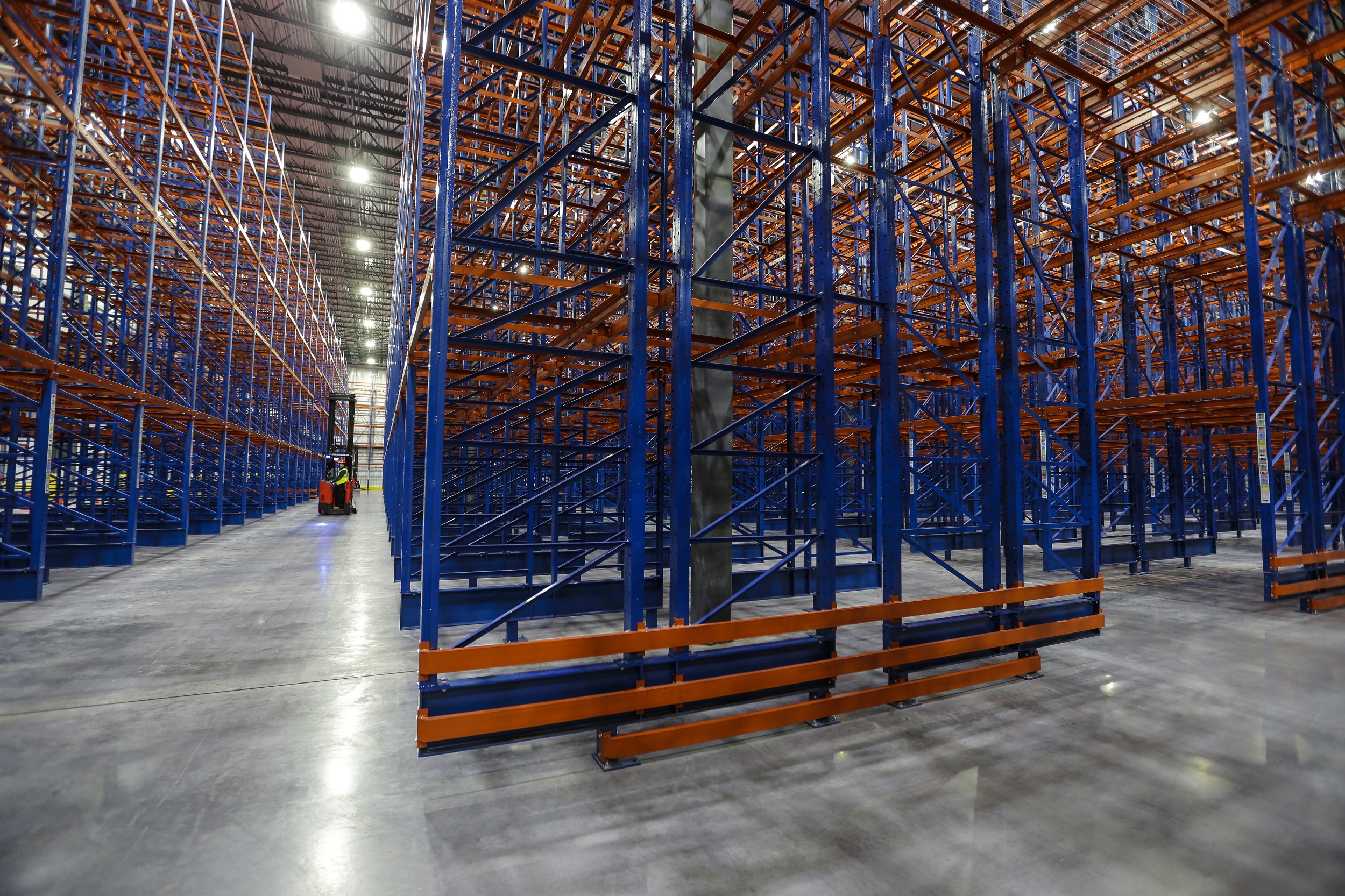

Double-Deep Pallet Racking
A two-deep version of selective pallet rack designed to increase pallet density by reducing aisle space.

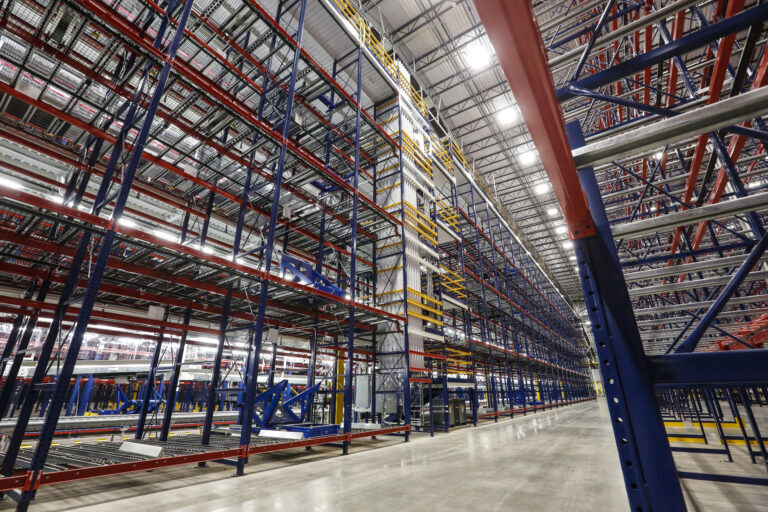

Warehouse Storage Solutions Beyond Pallet Rack
Not every storage challenge calls for pallet racking. Carton flow rack uses gravity-fed lanes at the case and piece level to keep pick faces replenished and order fulfillment moving. It's built for operations where carton flow and pick speed drive warehouse efficiency.
Industrial shelving covers configurations for small parts, tools, supplies, industrial drawers, and automotive storage systems. These warehouse storage solutions work alongside your racking to optimize vertical space and organize every zone in the facility, from receiving through pick-pack to overflow.
Carton flow rack — Gravity-fed lanes at the case and piece level for fast order fulfillment
Industrial shelving — Configurations for small parts, tools, supplies, and automotive storage
Mezzanines & pick modules — Vertical space utilization without expanding your building footprint

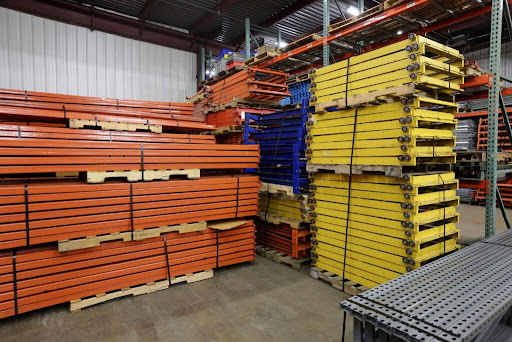

Pallet Rack Components & Accessories
Every racking system is built from components that determine load capacity, stability, and safety. Apex stocks upright frames, rack beams, and wire decking in a range of sizes and gauges to match your system's engineering requirements. Column protectors, row spacers, end row guards, and pallet supports reduce damage risk and improve safety across your installation.
Quick Ship inventory primarily covers selective rack components, shipping from Aurora, IL, Denver, CO, and Hickory, NC. Used rack systems (frames, beams, and accessories) are stocked as they become available. The fabrication and refurbishing team handles paint matching and custom configurations, so replacement parts match your existing system. Build your quote online for pallet racking components.
Engineering & Installation Services
Before a single beam is set, every project needs a clear picture of inventory flow, facility dimensions, equipment, and operational requirements. Apex begins with a structured site survey, then engineers use 3D AutoCAD and modeling tools to design layouts that make use of every pallet position. PE-certified engineering is available when your project requires stamped drawings.
Installation teams complete hundreds of projects annually across all racking system types. The Utah regional team provides local project coordination and faster response on scheduling, meeting your specific timelines. From permitting through final walk-through, pallet rack installation, design, and engineering are coordinated under one team.
Site Survey & 3D Design
AutoCAD modeling for every project
PE-Certified Engineering
Stamped drawings available
Local Project Management
Utah regional team on-site
How to Choose the Right Pallet Racking System
Choosing the right pallet racking system starts with understanding how your operation balances density, selectivity, productivity, and cost. Apex's Pallet Rack System Comparison Matrix maps every major system type across these four factors so you can evaluate fit before committing to a design. Selective rack scores highest in selectivity but lowest in density, while drive-in and push-back flip that equation, trading direct access for more positions per square foot.
Forklift compatibility matters too. Selective rack works with standard counterbalance trucks, while narrow-aisle systems need reach or turret equipment. Pallet flow and shuttle systems combine strong throughput with moderate density. Fully automated configurations deliver the highest productivity at a higher cost per position, and are generally premature when throughput data is uncharacterized or SKU velocity is in flux. Your existing fleet and operational data both factor into fit.
Utah Warehouse Storage Challenges
Utah's warehouse market comes with operational realities that out-of-state vendors often overlook. From temperature swings across the Mountain West to seismic design requirements and fast-growing distribution demand, facilities here need racking engineered for local conditions.
| Challenge | What It Looks Like | How We Help |
|---|---|---|
| Temperature extremes stress steel systems | Mountain West seasonal cycles cause steel rack to expand and contract, which can loosen hardware and accelerate wear on systems not engineered for the swing. | Apex designs rack systems with properly rated hardware and structural bracing built for Utah's climate, so your racking holds up through every season. |
| Cold storage demands specialized racking | Freezer and cooler environments add thermal stress and condensation exposure that standard rack isn't built to handle, raising long-term safety and replacement costs. | Apex engineers cold storage rack with conditions-rated components and bracing, matching the system to your temperature zone and product flow. |
| Seismic requirements drive design decisions | Utah's seismic activity means anchor patterns, bracing, and base plate details must align with local engineering requirements, not generic rack specs. | Every Apex installation in the Salt Lake City area is designed around local seismic factors, with anchor configurations and bracing matched to the site. |
| Fast capacity growth in a regional hub | Salt Lake City has become a Mountain West distribution hub, and seasonal peaks in outdoor gear, holiday fulfillment, and regional retail push facilities to add pallet positions quickly. | Apex helps you scale capacity with right-sized rack layouts, new and used components, and installation timed to your peak season planning. |
Pallet Rack Safety & Compliance
Racking that meets code on installation day can drift out of compliance over time. Forklift impacts, overloading, and settling all create risks that go unnoticed until an inspection or incident surfaces them. Properly rated anchors, posted load capacity placards, and scheduled rack inspection cycles keep systems aligned with RMI and OSHA guidance.
Apex PROs are trained through a SEIZMIC Engineering-certified program to evaluate rack systems for damage and structural integrity. Each inspection generates a detailed report with severity ratings and independent repair solutions. Operators can also start a self-guided assessment with the free Apex Rack Repair App on iOS and Android.
Compliance Checklist
Why Utah Businesses Choose Apex
Local sales coverage means projects don't stall waiting for out-of-region response times. The Salt Lake City team handles walkthroughs, quoting, and project coordination across Utah, the Mountain West, and the broader West Coast.
Projects with strict timelines or cost constraints have access to Apex's new and used rack inventory, with inspection, refurbishment, and paint matching available on used components. With 20+ years of experience and 1,000+ years of combined team expertise, every configuration recommendation starts with your operation's actual requirements.
Get Expert Help with Your Utah Warehouse Storage Project
Apex delivers pallet racking design, installation, and long-term support across Utah and the Mountain West, from facility review through engineering and scheduled inspections. Whether you're designing a new storage layout, adding capacity to an existing facility, or evaluating system fit, the project team manages coordination from initial assessment through installation.
Reach the Salt Lake City team at (833) 903-5246 or through the contact page to Schedule a Facility Review. We Got This!
