Push-Back Rack Components: Carts, Wheels & Rails

How Component Design Affects Fit, Flow, and Inspection

Push-back rack can add dense pallet storage without requiring a forklift to enter the lane, but the system is only a strong fit when the inventory profile, pallets, loads, operating environment, and component design work together. Push-back rack components—including carts, wheels, rails, and safety accessories—control how pallets are supported, guided, and returned to the aisle.

This guide helps warehouse owners, managers, operators, and technical teams decide where push-back rack fits, understand why component choices matter, and identify what to consider before planning a new system, repair, or replacement. The goal is not to select a wheel or rail in isolation. It is to evaluate the full lane as an engineered storage system.

A four-deep push-back lane uses nested carts on inclined rails, with the final pallet position supported directly on the rails.

See the loading sequence in the Apex push-back rack video.

Key Takeaway

Push-back rack performs best when carts, wheels, rails, pallets, loads, and operating conditions are evaluated as one engineered system—not as individual components. Matching the complete system to the application supports reliable pallet flow, storage density, and long-term performance.

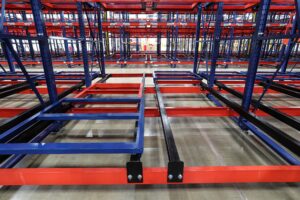

Three-deep push-back rack.

How Push-Back Rack Components Work Together

A push-back lane uses slightly inclined rails and a series of nested wheeled carts. The first pallet is placed on the top cart. Each subsequent pallet pushes the pallet ahead of it farther into the lane, exposing the next cart. The final pallet position rests directly on the rails. When the front pallet is removed, the rear pallets advance toward the pick aisle.

Because loading and unloading occur from the same aisle, push-back rack supports Last-In/First-Out (LIFO) rotation. Each lane is assigned to one SKU, so the system provides lane-level selectivity rather than direct access to every pallet. Lane depth is engineered for the application and commonly ranges from two to seven pallets, depending on the manufacturer, SKU volume, and load specifications.

The Tradeoff

Push-back rack is not simply a denser version of selective rack. It trades direct pallet access for deeper storage by lane. That trade works best for moderate- to high-volume SKUs that keep lanes well utilized.

Where Does Push-Back Rack Fit Best?

Push-back rack is a strong fit for warehouses that need higher storage density and can effectively manage inventory using LIFO lanes. Typical applications include:

Moderate- to high-volume SKUs.
Inventory that can be managed using LIFO rotation.
Limited floor space where reducing aisle count is a priority.
Consistent, stable pallet loads that meet the system’s design requirements.
Operations that can keep lanes well utilized and operators properly trained.

When Another Rack Type May Fit Better

The best storage plan may combine several rack types rather than use one system throughout the facility. Compare push-back with other options when:

FIFO rotation is required. Pallet flow rack or another FIFO solution may be a better fit.
Every pallet needs direct access, or the operation carries many low-volume SKUs. Selective rack may be more appropriate.
Slower-moving LIFO inventory is being stored and maximum storage density is the primary goal. Drive-in rack may be a better fit.
Pallet loads are inconsistent or do not meet the system’s design requirements.

A warehouse storage system comparison should account for SKU variety, pallets per SKU, rotation method, throughput, travel, equipment, and building clearances.

What Should You Evaluate Before Selecting a System?

Component selection starts with operating data. Before comparing carts, wheels, or rails, document the inputs that determine how the lane must perform:

Inventory profile: SKU volume, replenishment frequency, and whether LIFO rotation meets operational requirements.
Pallet loads: Consistent pallet size, weight, condition, and load stability.
Facility layout: Available floor space, vertical storage capacity, desired storage density, lane depth, and lift truck access.
Operating environment: Ambient, cooler, or freezer applications, along with any conditions that could affect system performance.
Material handling equipment: Forklifts and operators must be compatible with the rack design and loading process.

How Rails Affect Cart Travel

Push-back systems use I-beam, C-channel, or structural-tube rails, depending on the manufacturer and application. Each profile influences cart travel, structural support, and overall system performance.

I-beam: Supports the cart wheels on the lower flange, while the upper flange helps protect the rolling surface from debris. Wheel contact can increase friction, slowing cart travel.
C-channel: A durable structural rail that provides guided wheel travel. Like I-beam, it typically creates more friction than structural tubing and may require a steeper rail pitch.
Structural tube: Supports the cart on top of the rail, reducing wheel friction. This allows a lower system profile, less push-back force during loading, and consistent cart travel.

How Cart Design Supports Pallets

Decked carts add extra support for push-back systems when needed.

Push-back carts are commonly fabricated from roll-formed tube or structural angle, and their shape varies by manufacturer. Carts may use three- or four-sided frames and may be equal in size or progressively smaller so they nest at the aisle face. Color coding or other position indicators may be included to help operators identify the correct loading position.

Cart Accessories Depend on the Application

Possible accessories include pallet stops, backstops, rubber bumpers, lift-out protectors, pallet catches, and other manufacturer-specific guidance or retention features. Each accessory should be evaluated as part of the approved design. It should not replace correct pallet placement, controlled forklift movement, or operator training.

Non-Standard Pallets Need Specific Support

Standard push-back cart frames are typically sufficient in supporting loads on good quality pallets. For loads that need more continuous support, decking can be added to the push-back carts. This may be appropriate for weak or non-standard pallets, super sacks, or other loads with limited bottom contact.

Because decked carts increase system cost, they are most often an added accessory only when the application requires the additional load support.

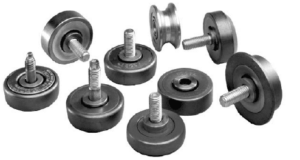

What Matters in Push-Back Rack Wheel Design?

Push-back rack wheels carry the cart load and guide movement along the rail. Wheel material, profile, bearings, position, and rail geometry all affect performance. Because these components vary by manufacturer, they should be evaluated as a matched assembly rather than as interchangeable parts.

Common Wheel Profiles

Flat: Uses a broad rolling surface designed to match the system’s rail profile.
Tapered: Uses an angled or rounded profile as part of the manufacturer’s wheel-and-rail design.
Flanged: Includes a guide flange that helps keep the wheel aligned within compatible channel rails.
Contoured: Uses a center groove that matches the rail profile and guides cart travel.

Wheel profile alone does not determine cart performance. Wheel position, rail geometry, bearing design, load, alignment, and the manufacturer’s overall cart design all influence friction and cart travel. For this reason, wheels should always be matched to the original push-back system.

Proper wheel performance depends on matching the wheel, rail, and cart design and keeping the system in good operating condition. Routine inspection and maintenance help identify wear, damage, or debris before they affect cart travel. For inspection and maintenance recommendations, see our Push-Back Rack Maintenance Guide.

Which Operating Conditions Affect Performance?

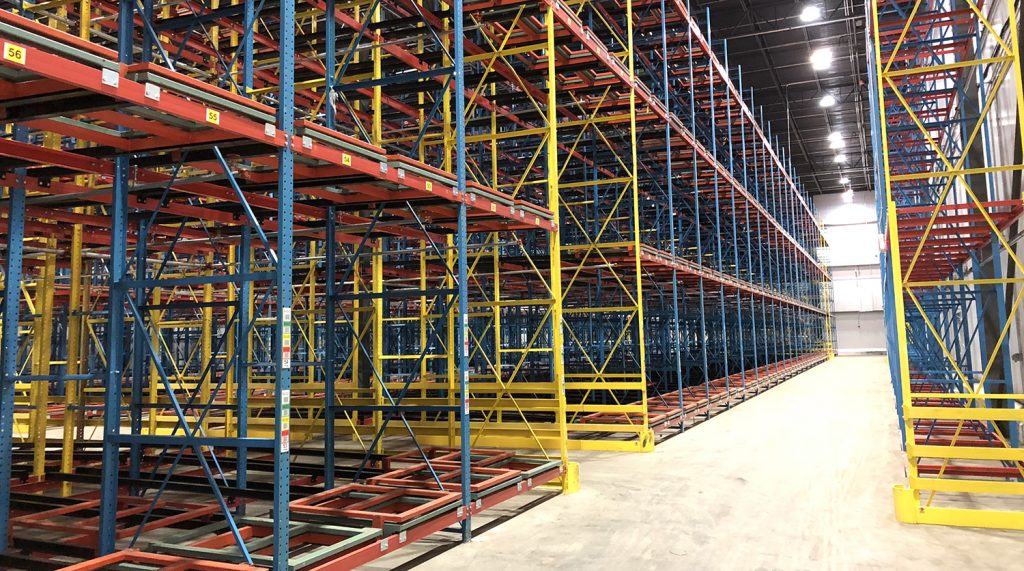

Two-deep push-back cart rack in cold storage.

Pallets and Loads

Pallet dimensions, bottom-board contact, condition, load stability, and placement all affect cart movement. The system design should define the acceptable pallet and load range, including any permitted weight variation within a lane. Do not assume that loads can be interchanged safely because they fit physically.

Moisture, Ice, Oils, and Debris

Push-back rack can be designed for ambient, cooler, and freezer applications, but the environmental conditions still matter. Ice, condensation, liquids, oils, dust, or debris can interfere with wheel-and-rail contact or prevent carts from moving as intended. Do not apply lubricants or cleaners unless they are approved for the specific system.

Operator Practices

Train operators to center pallets, maintain proper fork clearance, and handle push-back lanes smoothly. Never use the forks to strike or reposition carts, rails, or rack components. If a lane does not flow properly, report the issue rather than forcing the system back into operation.

Routine inspection and preventive maintenance help keep push-back systems operating safely and reliably. For recommended inspection practices, see our Operating and Optimizing Your Push-Back Pallet Rack System guide.
